[オープンソース] PicoからPicoWに出世しました。Pico卒業して、次はOS付きRaspberry Piかな

PicoWってTCPIP使えるので、僕にとってはメッチャ楽チンです。

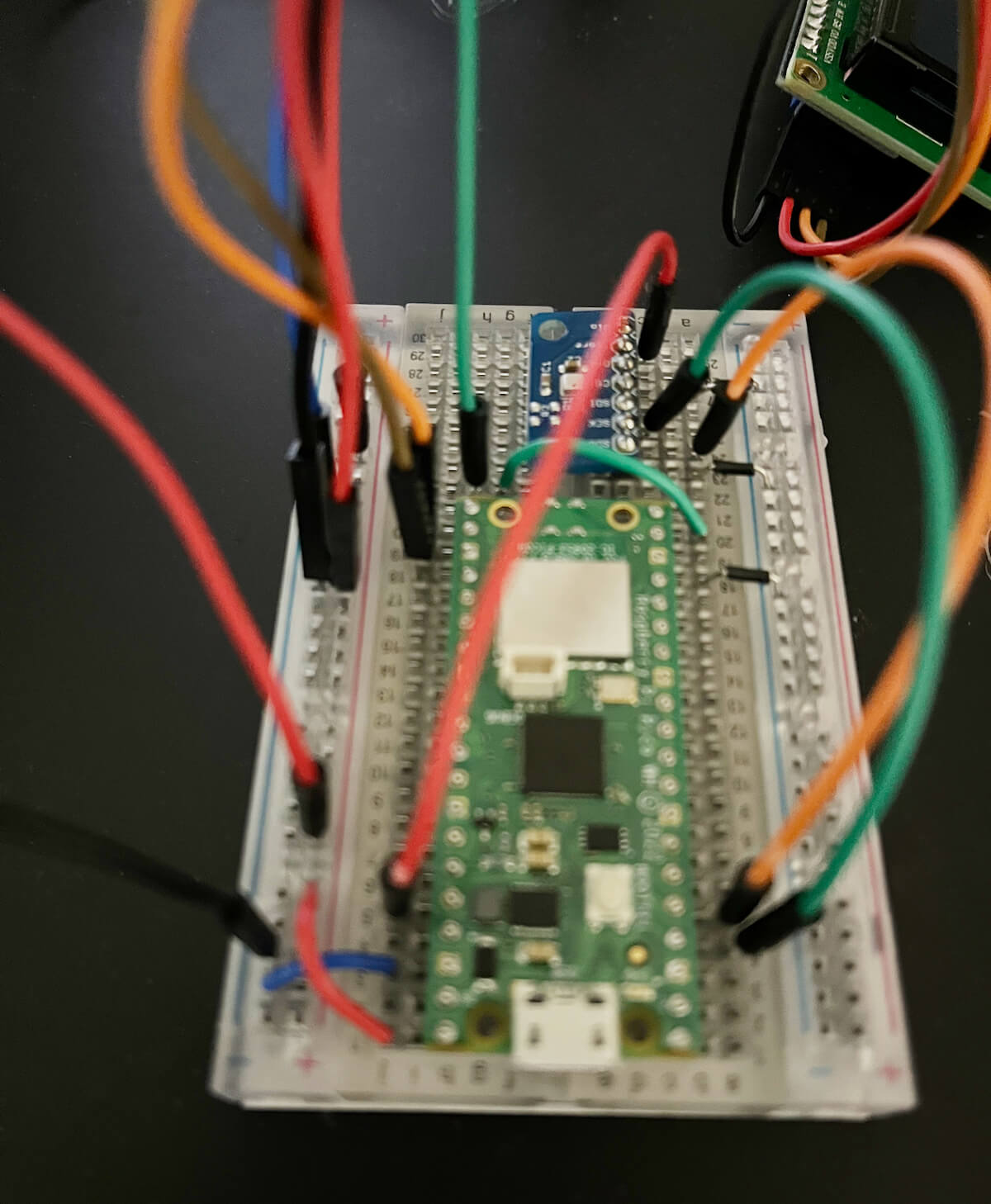

今回、Picoには、サーボモータと、温度・気圧・湿度センサーだけ取り付けました。

今まで、ハンダ使った事なかったので、断線が多くディバックで無駄なハマり多かったのですが、ハンダも覚えたので、PGに集中できました。

クラシックなWebページに、湿度・気圧・湿度を表示して、スライダーで角度を指定し、サーボを動かしました。




import time
import network
import socket
import re
from lcd1602 import LCD
from machine import Pin, PWM, I2C
from NetInfo import NetInfo
from bme280 import BME280

def servo_value(degree):
    return int((degree * 9.5 / 180 + 2.5) * 65535 / 100)

try:
    led = Pin('LED', Pin.OUT)
    led.value(1)
    time.sleep(1)
    lcd = LCD()
    lcd.clear()
    lcd.message("read setting")
    netInfo = NetInfo()
    wifiText = netInfo.getWifiSetting()
    netInfo.setWifiSetting(wifiText,netInfo)
    led.value(0)
    lcd.clear()
    lcd.message("wifi connecting \n" + netInfo.Ssid + ':' + netInfo.Pass)
    wlan = network.WLAN(network.STA_IF)
    wlan.active(True)
    wlan.connect(netInfo.Ssid, netInfo.Pass)
    lcd.clear()
    lcd.message("wifi connect \n" + netInfo.Ssid + ':' + netInfo.Pass)

    bme = BME280()

    while wlan.isconnected() == False:
        pass
    lcd.clear()
    lcd.message("wifi connected!")
    wlan.ifconfig((netInfo.Ip, netInfo.Mask, netInfo.Gw, '8.8.8.8'))
    time.sleep(1)
    wlan_status = wlan.ifconfig()
    lcd.clear()
    lcd.message(f'IP Address: \n{wlan_status[0]}')
    pwmServo = PWM(Pin(15))
    pwmServo.freq(50)
    ang = 0
    pwmServo.duty_u16(servo_value(ang))

    addr = socket.getaddrinfo('0.0.0.0', 80)[0][-1]
    s = socket.socket()
    s.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
    s.bind(addr)
    s.listen(1)
    lcd.clear()
    lcd.message('listening on\n' + wlan_status[0])
    led.value(1)



    while True:
        cl, addr = s.accept()
        try:
            lcd.clear()
            lcd.message('client connected from \n' + str(addr[0]))
            request = cl.recv(1024)
            request = str(request)
            print(request)
            anglevalue = request.find('angle=')
            if (anglevalue >= 0):
                anglevalue = request.index('angle=')
                anglevalue = anglevalue + len('angle=')
                ang = int(re.sub(r"\D", "", request[anglevalue:anglevalue + 4]))
                print('anglevalue:' + str(ang))
                pwmServo.duty_u16(servo_value(ang))
                lcd.clear()
                lcd.message('client ' + str(ang) + ' from \n' + str(addr[0]))

            print('@num' + str(ang))
            threeValues = bme.values
            print(threeValues)
            temp = str(threeValues[0]) + '°C'
            print('@Temperature' + threeValues[0])
            press = str(threeValues[1]) + 'hPa'
            print('@Pressure' + threeValues[1])
            humi = str(threeValues[2]) + '%'
            print('@Humidity' + threeValues[2])

            response = netInfo.getHtml().replace('@num',str(ang))
            print('getHtml() done')
            response = response.replace('@Temperature',temp)
            response = response.replace('@Pressure',press)
            response = response.replace('@Humidity',humi)
            full_response = 'HTTP/1.0 200 OK\r\nContent-type: text/html\r\n\r\n' + response
            print(full_response)
            cl.send(full_response)
            cl.close()

        except OSError as e:
            cl.close()
            lcd.clear()
            lcd.message('OSError')
        except:
            cl.close()
            lcd.clear()
            lcd.message('Error')
            pass
except KeyboardInterrupt:
    pass

class NetInfo:
    Ssid = ''
    Pass = ''
    Ip = ''
    Mask = ''
    Gw = ''
    def set(self,Ssid,Pass,Ip,Mask,Gw):
        self.Ssid = Ssid
        self.Pass = Pass
        self.Ip = Ip
        self.Mask = Mask
        self.Gw = Gw

    def getWifiSetting(self):
        path = '/wifi.txt'
        try:
            with open(path,'r') as rf:
                strReadData = rf.read()
                print("rf.read : " + strReadData)
                return strReadData
        except:
            strWriteData = ''
            with open(path,'w') as wf:
                strWriteData = 'ssid:240258107387' + '\n'
                strWriteData = strWriteData + 'pass:36113521' + '\n'
                strWriteData = strWriteData + 'ip:192.168.32.140' + '\n'
                strWriteData = strWriteData + 'mask:255.255.254.0' + '\n'
                strWriteData = strWriteData + 'gw:192.168.32.1' + '\n'
                try:
                    wf.write(strWriteData)
                    print("wf.write : " + strReadData)
                except:
                    pass
                return strWriteData
                pass
    def setWifiSetting(self,inText,netInfo):
        try:
            netInfo.Ssid = ''
            netInfo.Pass = ''
            netInfo.Ip = ''
            netInfo.Mask = ''
            netInfo.Gw = ''
            for item in inText.split('\n'):
                if (item.rfind('ssid:') != -1):
                    netInfo.Ssid = item[5:]
                if (item.rfind('pass:') != -1):
                    netInfo.Pass = item[5:]
                if (item.rfind('ip:') != -1):
                    netInfo.Ip = item[3:]
                if (item.rfind('mask:') != -1):
                    netInfo.Mask = item[5:]
                if (item.rfind('gw:') != -1):
                    netInfo.Gw = item[3:]
            print("setWifiSetting : \n" + netInfo.Ssid)
            return
        except:
            pass

    def getHtml(self):
        strHtml = 'HTML string'
        return strHtml



import machine
import time

class LCD():
    def __init__(self, addr=0x27, blen=1):
        sda = machine.Pin(16)
        scl = machine.Pin(17)
        self.bus = machine.I2C(0,sda=sda, scl=scl, freq=400000)
        print(self.bus)
        print(str(self.bus.scan()))
        print(str(hex(self.bus.scan()[0])))
        self.addr = addr
        self.blen = blen
        self.send_command(0x33) # Must initialize to 8-line mode at first
        time.sleep(0.005)
        self.send_command(0x32) # Then initialize to 4-line mode
        time.sleep(0.005)
        self.send_command(0x28) # 2 Lines & 5*7 dots
        time.sleep(0.005)
        self.send_command(0x0C) # Enable display without cursor
        time.sleep(0.005)
        self.send_command(0x01) # Clear Screen
        self.bus.writeto(self.addr, bytearray([0x08]))

    def write_word(self, data):
        temp = data
        if self.blen == 1:
            temp |= 0x08
        else:
            temp &= 0xF7
        self.bus.writeto(self.addr, bytearray([temp]))

    def send_command(self, cmd):
        # Send bit7-4 firstly
        buf = cmd & 0xF0
        buf |= 0x04               # RS = 0, RW = 0, EN = 1
        self.write_word(buf)
        time.sleep(0.002)
        buf &= 0xFB               # Make EN = 0
        self.write_word(buf)

        # Send bit3-0 secondly
        buf = (cmd & 0x0F) << 4
        buf |= 0x04               # RS = 0, RW = 0, EN = 1
        self.write_word(buf)
        time.sleep(0.002)
        buf &= 0xFB               # Make EN = 0
        self.write_word(buf)

    def send_data(self, data):
        # Send bit7-4 firstly
        buf = data & 0xF0
        buf |= 0x05               # RS = 1, RW = 0, EN = 1
        self.write_word(buf)
        time.sleep(0.002)
        buf &= 0xFB               # Make EN = 0
        self.write_word(buf)

        # Send bit3-0 secondly
        buf = (data & 0x0F) << 4
        buf |= 0x05               # RS = 1, RW = 0, EN = 1
        self.write_word(buf)
        time.sleep(0.002)
        buf &= 0xFB               # Make EN = 0
        self.write_word(buf)

    def clear(self):
        self.send_command(0x01) # Clear Screen

    def openlight(self):  # Enable the backlight
        self.bus.writeto(self.addr,bytearray([0x08]))
        # self.bus.close()

    def write(self, x, y, str):
        if x < 0: x = 0 if x > 15:
            x = 15
        if y < 0: y = 0 if y > 1:
            y = 1

        # Move cursor
        addr = 0x80 + 0x40 * y + x
        self.send_command(addr)

        for chr in str:
            self.send_data(ord(chr))

    def message(self, text):
        #print("message: %s"%text)
        for char in text:
            if char == '\n':
                self.send_command(0xC0) # next line
            else:
                self.send_data(ord(char))

import time
from ustruct import unpack, unpack_from
from array import array
import machine

# BME280 default address.
BME280_I2CADDR = 0x76

# Operating Modes
BME280_OSAMPLE_1 = 1
BME280_OSAMPLE_2 = 2
BME280_OSAMPLE_4 = 3
BME280_OSAMPLE_8 = 4
BME280_OSAMPLE_16 = 5

BME280_REGISTER_CONTROL_HUM = 0xF2
BME280_REGISTER_CONTROL = 0xF4


class BME280:

    def __init__(self,
                 mode=BME280_OSAMPLE_1,
                 address=BME280_I2CADDR,
                 i2c=None,
                 **kwargs):
        # Check that mode is valid.
        if mode not in [BME280_OSAMPLE_1, BME280_OSAMPLE_2, BME280_OSAMPLE_4,
                        BME280_OSAMPLE_8, BME280_OSAMPLE_16]:
            raise ValueError(
                'Unexpected mode value {0}. Set mode to one of '
                'BME280_ULTRALOWPOWER, BME280_STANDARD, BME280_HIGHRES, or '
                'BME280_ULTRAHIGHRES'.format(mode))
        self._mode = mode
        self.address = address
        if i2c is None:
            i2c = machine.I2C(1,scl=machine.Pin(3, machine.Pin.IN), sda=machine.Pin(2, machine.Pin.IN), freq=400000)
            print(i2c)
            print(str(hex(i2c.scan()[0])))
            #raise ValueError('An I2C object is required.')
        self.i2c = i2c

        # load calibration data
        dig_88_a1 = self.i2c.readfrom_mem(self.address, 0x88, 26)
        dig_e1_e7 = self.i2c.readfrom_mem(self.address, 0xE1, 7)
        self.dig_T1, self.dig_T2, self.dig_T3, self.dig_P1, \
            self.dig_P2, self.dig_P3, self.dig_P4, self.dig_P5, \
            self.dig_P6, self.dig_P7, self.dig_P8, self.dig_P9, \
            _, self.dig_H1 = unpack("<HhhHhhhhhhhhBB", dig_88_a1)

        self.dig_H2, self.dig_H3 = unpack("<hB", dig_e1_e7)
        e4_sign = unpack_from("<b", dig_e1_e7, 3)[0]
        self.dig_H4 = (e4_sign << 4) | (dig_e1_e7[4] & 0xF)

        e6_sign = unpack_from("<b", dig_e1_e7, 5)[0]
        self.dig_H5 = (e6_sign << 4) | (dig_e1_e7[4] >> 4)

        self.dig_H6 = unpack_from("<b", dig_e1_e7, 6)[0]

        self.i2c.writeto_mem(self.address, BME280_REGISTER_CONTROL,
                             bytearray([0x3F]))
        self.t_fine = 0

        # temporary data holders which stay allocated
        self._l1_barray = bytearray(1)
        self._l8_barray = bytearray(8)
        self._l3_resultarray = array("i", [0, 0, 0])

    def read_raw_data(self, result):
        """ Reads the raw (uncompensated) data from the sensor.

            Args:
                result: array of length 3 or alike where the result will be
                stored, in temperature, pressure, humidity order
            Returns:
                None
        """

        self._l1_barray[0] = self._mode
        self.i2c.writeto_mem(self.address, BME280_REGISTER_CONTROL_HUM,
                             self._l1_barray)
        self._l1_barray[0] = self._mode << 5 | self._mode << 2 | 1
        self.i2c.writeto_mem(self.address, BME280_REGISTER_CONTROL,
                             self._l1_barray)

        sleep_time = 1250 + 2300 * (1 << self._mode)
        sleep_time = sleep_time + 2300 * (1 << self._mode) + 575
        sleep_time = sleep_time + 2300 * (1 << self._mode) + 575
        time.sleep_us(sleep_time)  # Wait the required time

        # burst readout from 0xF7 to 0xFE, recommended by datasheet
        self.i2c.readfrom_mem_into(self.address, 0xF7, self._l8_barray)
        readout = self._l8_barray
        # pressure(0xF7): ((msb << 16) | (lsb << 8) | xlsb) >> 4
        raw_press = ((readout[0] << 16) | (readout[1] << 8) | readout[2]) >> 4
        # temperature(0xFA): ((msb << 16) | (lsb << 8) | xlsb) >> 4
        raw_temp = ((readout[3] << 16) | (readout[4] << 8) | readout[5]) >> 4
        # humidity(0xFD): (msb << 8) | lsb
        raw_hum = (readout[6] << 8) | readout[7] result[0] = raw_temp result[1] = raw_press result[2] = raw_hum def read_compensated_data(self, result=None): """ Reads the data from the sensor and returns the compensated data. Args: result: array of length 3 or alike where the result will be stored, in temperature, pressure, humidity order. You may use this to read out the sensor without allocating heap memory Returns: array with temperature, pressure, humidity. Will be the one from the result parameter if not None """ self.read_raw_data(self._l3_resultarray) raw_temp, raw_press, raw_hum = self._l3_resultarray # temperature var1 = ((raw_temp >> 3) - (self.dig_T1 << 1)) * (self.dig_T2 >> 11)
        var2 = (((((raw_temp >> 4) - self.dig_T1) *
                  ((raw_temp >> 4) - self.dig_T1)) >> 12) * self.dig_T3) >> 14
        self.t_fine = var1 + var2
        temp = (self.t_fine * 5 + 128) >> 8

        # pressure
        var1 = self.t_fine - 128000
        var2 = var1 * var1 * self.dig_P6
        var2 = var2 + ((var1 * self.dig_P5) << 17)
        var2 = var2 + (self.dig_P4 << 35) var1 = (((var1 * var1 * self.dig_P3) >> 8) +
                ((var1 * self.dig_P2) << 12))
        var1 = (((1 << 47) + var1) * self.dig_P1) >> 33
        if var1 == 0:
            pressure = 0
        else:
            p = 1048576 - raw_press
            p = (((p << 31) - var2) * 3125) // var1 var1 = (self.dig_P9 * (p >> 13) * (p >> 13)) >> 25
            var2 = (self.dig_P8 * p) >> 19
            pressure = ((p + var1 + var2) >> 8) + (self.dig_P7 << 4)

        # humidity
        h = self.t_fine - 76800
        h = (((((raw_hum << 14) - (self.dig_H4 << 20) - (self.dig_H5 * h)) + 16384) >> 15) * (((((((h * self.dig_H6) >> 10) *
                            (((h * self.dig_H3) >> 11) + 32768)) >> 10) +
                          2097152) * self.dig_H2 + 8192) >> 14))
        h = h - (((((h >> 15) * (h >> 15)) >> 7) * self.dig_H1) >> 4)
        h = 0 if h < 0 else h h = 419430400 if h > 419430400 else h
        humidity = h >> 12

        if result:
            result[0] = temp
            result[1] = pressure
            result[2] = humidity
            return result

        return array("i", (temp, pressure, humidity))

    @property
    def values(self):
        """ human readable values """

        t, p, h = self.read_compensated_data()

        p = p // 256
        pi = p // 100
        pd = p - pi * 100

        hi = h // 1024
        hd = h * 100 // 1024 - hi * 100
        return ("{}".format(t / 100), "{}.{:02d}".format(pi, pd),
                "{}.{:02d}".format(hi, hd))

コメントを残す

メールアドレスが公開されることはありません。 が付いている欄は必須項目です
